HN7000s Satellite Modem
Hughesnet HN7000S terminal - Supports Adaptive Coding and Modulation
(ACM DVB-S2) on
the outbound channel which means that operators can gain
significant bandwidth efficiencies and provide high
availability services as well.
HughesNet® HN7000S, part of Hughes’ HN7000S family, is a high-performance broadband satellite router designed to provide high-speed access for the consumer, small office/home office, and enterprise markets. Designed to provide both versatility and performance, the HN7000S provides unsurpassed performance for even the most bandwidth-intensive applications.
Other Hughes HN Units:
- Hughes HN7000-S
- HughesNet HN7700
- HN9500
The HN7000S operates with all Hughes HN systems and uses the industry standards DVB-S or DVB-S2. As a result, the HN7000S can be easily configured to support a wide range of downstream data rates by selecting different modulation, symbol, and FEC coding rates. The downstream is scalable up to 121 Mbps and the upstream return channel is scalable up to 1.6 Mbps. The HN7000S provides an integrated broadband LAN solution to Windows®, UNIX®, Apple® Macintosh®, and other platforms running IP over Ethernet. The HN7000S coexists with prior generations of DW terminals, thereby ensuring protection of service operators’ investments.
The HN7000S receives and transmits data over the satellite via the Hughes HN Network Operations Center (NOC). TCP connections can be initiated to or from hosts at remote locations. Security is assured through DES encryption and integrated conditional access. In addition, all user intranet communications can be isolated from other enterprise intranets and from remote terminals accessing the “public” Internet operating in the same network.
The HN7000S broadband satellite router passes IP data packets to and from any IP device on the LAN and has much of the functionality of an IP router. The HN7000S incorporates Hughes’ advanced Performance Enhancing Proxy (PEP) feature, which increases throughput performance and maximizes the user’s experience and satisfaction. The HN7000S also supports Hughes’ TurboPage® feature, providing HTTP acceleration for lightning fast browser performance. The HN7000S supports advanced Quality of Service features to ensure that customers get the priority and bandwidth they require.
Advanced Satellite Internet Technology
hn9000 rear view
with connectors.
Through use of advanced multi-spot-beam antenna and onboard data processing technologies, SPACEWAY satellites are at the vanguard of the most advanced next generation high-capacity Ka-band satellites. Such capabilities are the foundation for a host of advanced features such as full-mesh, single-hop connectivity among customer terminals. SPACEWAY represents the most sophisticated advanced packet transmission infrastructure complete with IP-based user interfaces, satellite terminals, comprehensive network management and service management functionality, all optimized to provide end-to-end broadband access and network connectivity services.
The new Hughesnet HN9000's going to replace the HN7000's or will the HN7000's still be offered as well? They are going to replace the 7000 eventually. As of now though the 9000 can only operate on the Spaceway 3 satellite. Not every customer is going to be able to see the Spaceway 3 satellite, so Hughes is still going to offer the 7000 to those customers. If you keep up with the FSB's Hughes released one last week that explains how to convert a 9000 customer to a 7000 if LOS issues.
HUGHESNET the globe leader in satellite networking, has inaugurated the HN9000 series System, projected and optimised for small-scale networks wherever the provision of top quality and high-bandwidth links are the most significant standard. Building on the heritage and capabilities of the more than 700,000 broadband satellite terminals sold by Hughes, the new HN Spaceway System comprises numerous of the innovative features pioneered by Hughes. Let mentioned some of them suchlike embedded advanced IP networking features and TCP acceleration.
Features
Supports unicast and multicast IP
traffic
Software and configuration updates via
download from the NOC
Implements Performance Enhancement
Proxy (PEP) software to accelerate
throughput performance by optimizing
the TCP transmission over the satellite,
delivering superior user experience and
link efficiency
Implements TurboPage software to
accelerate HTTP traffic for fast browser
access
Quality of Service features include:
IQoS (Inbound Quality of Service),
bidirectional DSCP, and outbound
bandwidth management.
Supports Hughes VPN Accelerator
Bi-directional data compression
Configuration, status monitoring, and
commissioning via the NOC
Acts as a local router providing:
Static and dynamic addressing
DHCP server or relay
DNS Caching
Full RIPV2 routing support
Multicasts to the LAN by using IGMP
NAT/PAT
VLAN tagging
Firewall support through integrated
access control lists
Throughput:
At least 45 Mbps of multicast/streaming traffic, or
At least 4 Mbps of FTP traffic, or
At least 2 Mbps of HTTP accelerated traffic, or
At least 10 Mbps of UDP traffic, or
Any combination of the above with proportional
performance
Remote terminal management via the Hughes Vision® Network Management System or Unified Element Manager and SNMP agent Universal power supply supports international voltage ranges and frequencies and has a detachable power cord User-friendly LED display indicating terminal operational status
About Spaceway
hn9000 rear view
with connectors.
Hughes, one of the leading satellite technology firms operating in the world, has introduced into the satellite broadband internet market, the most bandwidth-efficient satellite internet modem it has ever developed. The optimised and refined device, HughesNet HN 7000s, according to the satellite communications giant belongs to the next generation of satellite internet technology.
The freshly introduced satellite internet modem by HughesNet has been designed to deliver not only an improved performance for all the service plans of HUghesNet, but also higher connection speeds. The modem transmits as well as receives data via the network of HughesNet and is compatible with Macintosh and Windows interfaces. Moreover, the device can connect to the computer through an Ethernet connection.
The HughesNet HN 7000s demands no software to be loaded as it is pretty self hosting, and upgrades automatically to the next software levels when the fresh versions become available. For installation and operation, the device uses two-way satellite internet communication, besides requiring no telephone line for the same.
Meanwhile, the modem indicates the terminal operational status through a consumer-friendly LED and the Ethernet connection offers convenient connection to a computer or household network. The HN 7000s can also provide a dynamically addressing DHCP server by acting as a local router. Besides, the support of the Network operation Center of HughesNet provides a hassle-free commissioning, status-monitoring and configuration.
hn9000 rear view with connectors.
Furthermore, the satellite modem engages DVB-S2 as the outbound transmission format with a reception data rate of up to 90Mbps and a transmission data rate of up to 1.6Mbps. The device is complimented by a Ku-band radio of 1 and 2 Watt. It weighs 2.18 kg and has the dimensions 11.5? width x 1.8? height x 11? depth.
Networking
If you have more than one computer in your household, you have probably wished at some point that you could access the Internet from a computer other than the one connected to HUGHESNET. Networking makes it possible to share your HUGHESNET Internet access with every computer in your house. The kids won't have to fight about whose turn it is to get online and you can work comfortably from your office while they chat and surf in their bedrooms. On this page, you will find helpful information about sharing your HUGHESNET connection using a network. Your network setup and configuration will depend upon which HUGHESNET service plan you are subscribed to. The HN7000S is self-hosted, which means there is no software to load on you computer. The HN7000S also eliminates the need to use ICS to share Internet access with other computers. Every computer on your network can communicate directly with the HN7000S and access the internet using inexpensive networking technology. PLEASE NOTE "HUGHESNET" does NOT provide technical support for networking. Since all networks are slightly different, support for your network must come from your local computer store's technical specialist who can provide that "hands-on" and "eyes-on" assistance to you that your individual computer network may require. Your "HUGHESNET" installer specializes in satellite dish installation and not computers, and he/she should not be expected to connect your computer(s) to your network. The installer will usually demonstrate the system works properly on his/her own laptop, ready for you, or your computer person to begin your special connections.
HN7000S (Home Consumer Service Plan) and Wireless Networking Basics

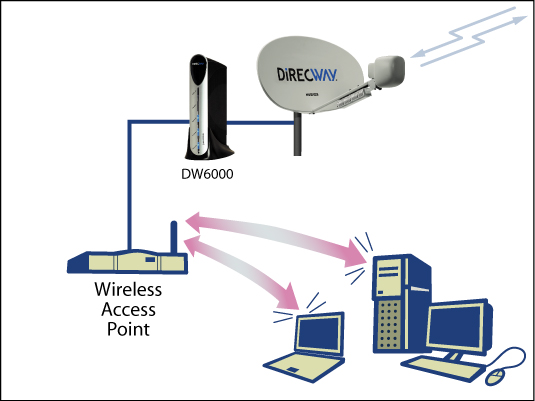

Wireless networking is the easiest way to get started because you don't have to run wires throughout your house. You'll need a Wireless Access Point (WAP), which will allow you to share your HUGHESNET connection. The Ethernet output on your HN7000S will plug directly into the WAP. Then you'll need a wireless device for each computer you want to share your connection with. Laptops use PC cards, which can easily be installed and removed. Desktop computers can use either a PCI or USB adapter. To install the PCI adapter, you'd need to open your computer whereas the USB adapter can be plugged into any open USB port. Even if you're not comfortable opening up your computer, wireless networking is not difficult to install or use. The key to a good wireless network is placement of your wireless access point and your computers. The wireless access point will be the link between your networked computers and your HUGHESNET service, so it is important to establish a strong signal between the wireless access point and your computers. A poor wireless signal will negatively impact your Internet performance over the network. Finding the best placement of your access point for maximum range is a trial and error process. This is what your wireless home network would look like with the HN7000S
The HN7000S (Consumer Service Plan) with a Wired Network
With a wired network, you will have no concerns about signal strength like with a wireless network. However, the tradeoff is you'll have to run wires to every computer you want to share your HUGHESNET connection with. You'll need a hub or a switch (one port per computer), which you'll connect to your HN7000S with an Ethernet cable. Then you'll connect each computer to the hub using an Ethernet cable. Each computer needs an Ethernet port. Almost all newer computers come equipped with a Network Interface Card (NIC), but if yours does not have one, you'll have to install one. This is what your wired home network would look like with the HN7000S
HN7000S Professional Service Plan (with a "static IP")
HUGHESNET Professional service can be purchased with a static IP address. In order to properly configure your network, you'll need a router, available from your local computer store or most big-box retailers. The purpose of a router is to direct data to take a specific path to and from your computers on your network out to the Internet and back again.
Safety and Security
Whether you have a network installed or not, maintaining your security and privacy on the Internet is of utmost importance. Make sure that you have Anti-Virus software installed on every computer you use to access the Internet.
The Pro-Plus Service Plan (offers at additional charge) a never-changing IP address visible to the world, a firewall is highly recommended for users of this service plan. Be aware that many wireless routers usually include the firewall software/firmware to protect your network.
The HN7000S (Pro-Plus Service) and Wireless Networking Basics
Wireless networking is the easiest way to get started because you don't have to run wires throughout your house or office. You'll need a Wireless Router which will allow you to share your HUGHESNET connection. The Ethernet output on your HN7000S will plug directly into the wireless router. Then you'll need a wireless device for each computer you want to share your connection with. Laptops use PC cards, which can easily be installed and removed. Desktop computers can use either a PCI or USB adapter. To install the PCI adapter, you'd need to open your computer whereas the USB adapter can be plugged into any open USB port. Even if you're not comfortable opening up your computer, wireless networking is not difficult to install or use. The key to a good wireless network is placement of your wireless router and your computers. The wireless router will be the link between your networked computers and your HUGHESNET service, so it is important to establish a strong signal between the router and you computers. A poor wireless signal will negatively impact your Internet performance over the network. Finding the best placement of your wireless router for maximum range is a trial and error process. This is what your wireless network would look like with HN7000S Pro-Plus Service.
The HN7000S (Pro-Plus Service Plan) with a Wired Network

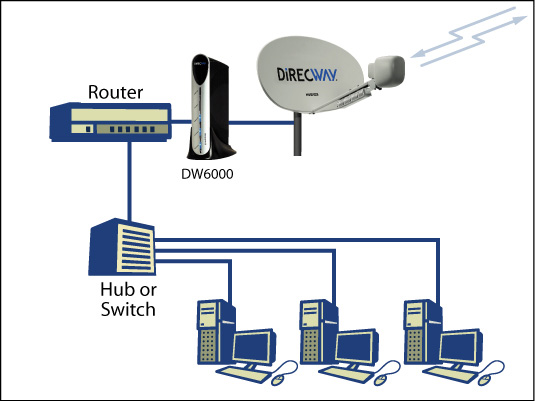

With a wired network, you will have no concerns about signal strength like with a wireless network. However, the tradeoff is you'll have to run wires to every computer you want to share your HUGHESNET connection with. You'll need a router, which you'll connect to your HN7000S with an Ethernet cable. A multi-port router is recommended. If your router has only one port, you'll also need the hub or a switch (one port per computer) shown in the graphic below. Then you'll connect each computer to the hub/switch using an Ethernet cable. Each computer needs an Ethernet port. Almost all newer computers come equipped with a Network Interface Card (NIC), but if yours does not have one, you'll have to install one. This is what your wire network would look like with HN7000S Pro-Plus Service.
HUGHES HN9000 Broadband Terminal Features
| Technical Specifications |  |
|---|---|
| Satellite & Antenna Specifications: | |
| Outbound transm. format: | DVB-S or DVB-S2 |
| DVB-S2 | supports adaptive coding and modulation |
| Information Rate (Receive): | Up to 121 Mbps |
| Information Rate (Transmit): | Up to 3.2 Mbps |
| Symbol Rate (Receive): | 1 to 45 Msps (in 1 Msps steps) |
| Symbol Rate (Transmit): | 128, 256, 512, 1024 ksps |
| Encoding DVB-S (Receive): | Convolutional with concat. Reed Solomon; Viterbi 7/8, 5/6, 3/4, 2/3, 1/2 |
| Encoding DVB-S2 (Receive): | BCH with LDPC 3/5, 2/3, 3/4, 5/6, 8/9, or 9/10 (8PSK) 1/2, 3/5, 2/3, 4/5, 5/6, 8/9, 9/10 (QPSK) |
| Transmit encoding: | Rate 1/2, 2/3, 4/5 TurboCode, Rate 1/2 Convolutional |
| Frequency Range: | C-, extended C-, Ku-, and Ka-band |
| Modulation (Receive): | QPSK or 8PSK |
| Modulation (Transmit): | OQPSK |
| Bit Error Rate (Receive): | 10-10 or better |
| Bit Error Rate (Transmit): | 10-7 or better |
| Radio: | 1 and 2 watt Ku-band 2 watt C-band 1, 2, and 31/2 watt Ka-band |
| Physical Interfaces: | |
| Ethernet: | Two 10/100BaseT Ethernet LAN RJ45 ports |
| Serial: | One Serial port (RS-422 or RS-232) |
| Mechanical & Environmental: | |
| Weight (IDU): | 2.18 kg (4.8 lbs) |
| Dimensions: | 11.5" W x 1.8" H x 11" D (29.21 cm W x 4.7 cm H x 27.94 cm D) |
| Operating Temperature (IDU): | +32º F (0º C) to +104º F (+40º C) |
| Operating Temperature (ODU): | -22º F (-30º C) to +131º F (+55º C) |
| Input power: | 90 to 264 VAC; 50 to 60 Hz |
| DC power supply (optional): | 12 to 24 VDC |
